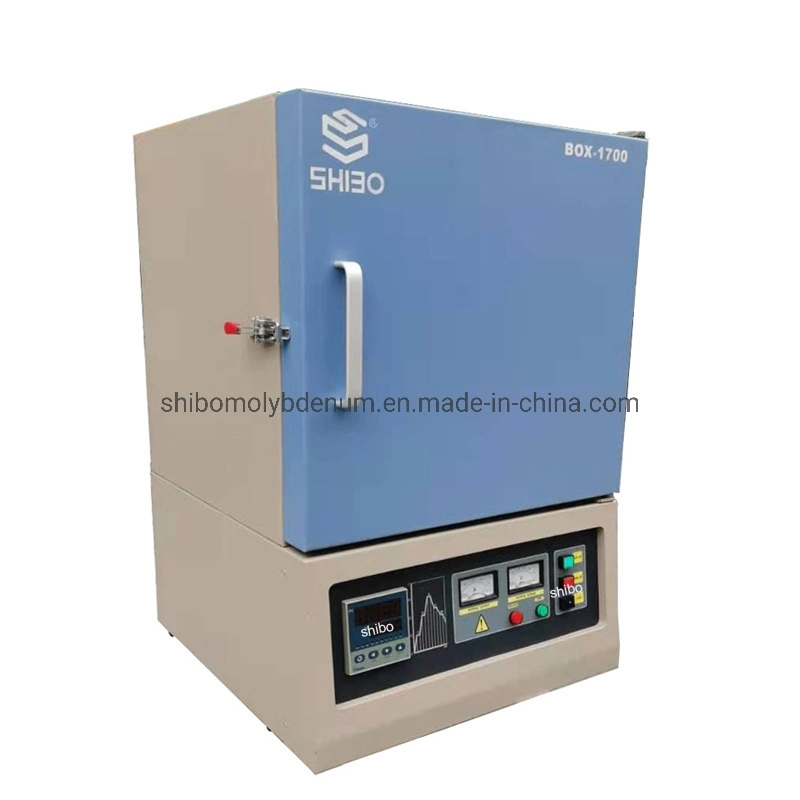

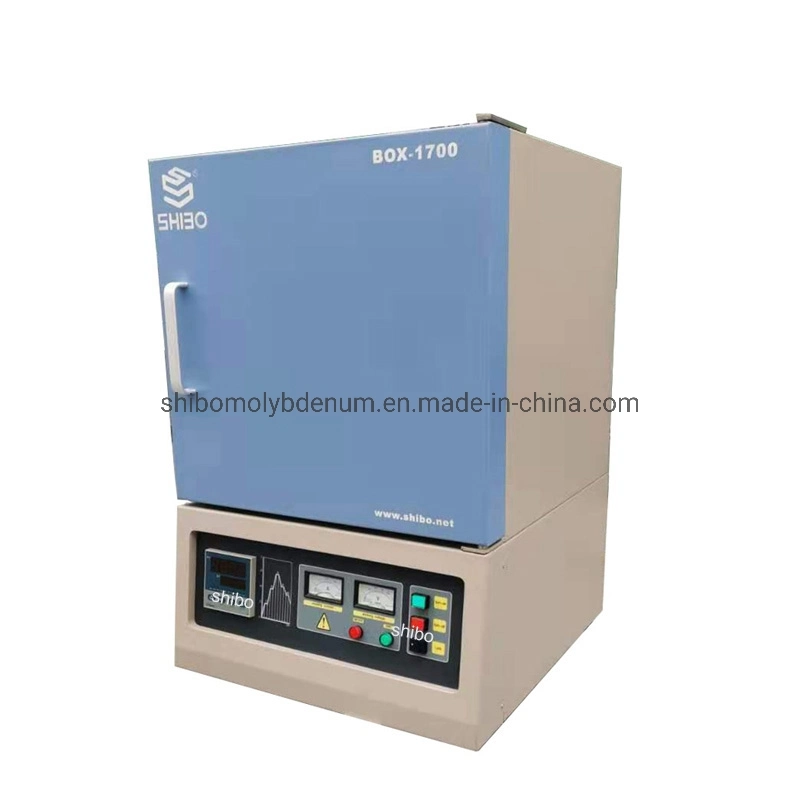

1700 electric box muffle furnace
BOX-1700 is the most cost effective bench-top high temperature muffle furnace made by SHIBO. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements. The furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy at +/-1C and 50 segments programmable up to 1700C or 3092F. It is an ideal tool for materials annealing and sintering in your research laboratory.
It is an excellent product for university, science research institution, mining industry to make powder,
ceramic sinter and anneal.
Our standard sizes for the box-1700 muffle furnace:
For other sizes, we can make as your requirement.
BOX-1700 is the most cost effective bench-top high temperature muffle furnace made by SHIBO. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements. The furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy at +/-1C and 50 segments programmable up to 1700C or 3092F. It is an ideal tool for materials annealing and sintering in your research laboratory.
| Mainly Specification for the BOX-1700 muffle furnace | |
| Furnace structure: | Double shell steel case with fan cooling |
| High purity alumina fiber insulation for max. energy saving | |
| Chameber Size: | 200(W)*200(H)*200(D)mm (8*8*8inch) |
| Max. temperature | 1700C |
| Wok temperature: | 1600C |
| Temperature control: | 50 segments programable and PID auto control |
| Heating elements: | High performance MoSi2 heating elements |
| Thermocouple: | Long Life B Type Thermocouple |
| Heating rate: | 0~20°C / min (suggestion =< 10°C) |
| Temperature accuracy: | +/-1 °C |
| Wok voltage: | AC220V, 50/60HZ single phase or as your requirement |
| Max power: | 7KW |
| Net weight: | 150kgs |
| Warranty: | 1 year warranty |
| Certificate: | CE certified |
| Optional items: | PC data recorder, Exhauster port, Quartz observation widow, Over temperature controller |
ceramic sinter and anneal.
Our standard sizes for the box-1700 muffle furnace:
| Model | Chamber size(W× H× D mm) | Max. Temperature |
| BOX-1700 | 150x150x150mm (6" x6" x6" ) | 1700. C |
| BOX-1700 | 150x150x200mm (6" x6" x8" ) | 1700. C |
| BOX-1700 | 200x200x200mm (8" x8" x8" ) | 1700. C |
| BOX-1700 | 200x200x300mm (8" x8" x12" ) | 1700. C |
| BOX-1700 | 250x250x300mm (10" x10" x12" ) | 1700. C |
| BOX-1700 | 300x300x400mm (12" x12" x16" ) | 1700. C |
| BOX-1700 | 350x350x400mm (14" x14" x16" ) | 1700. C |
| BOX-1700 | 400x400x400mm (16" x16" x16" ) | 1700. C |
| BOX-1700 | 500x500x500mm (20" x20" x20" ) | 1700. C |
